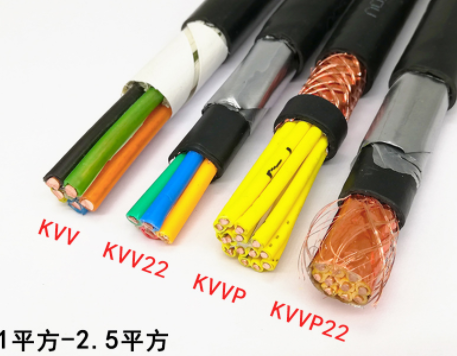

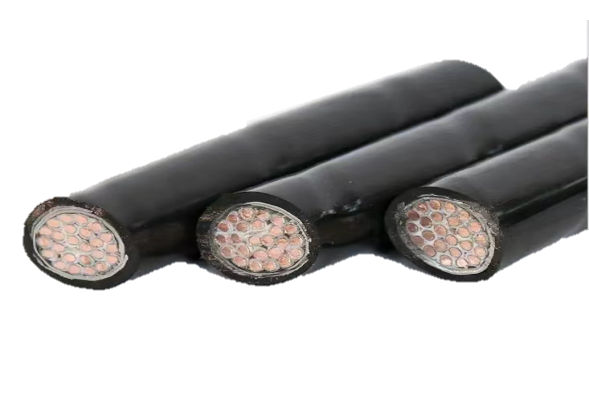

Full name: Polyvinyl Chloride Insulated Control Cable, commonly used for control, signal, protection, and measurement system wiring. The rated frequency voltage Uo/U is 450/750V. The allowable long-term maximum operating temperature of the cable conductor is 70°C. The environmental temperature during cable laying should not be lower than 0°C; if the environmental temperature is below 0°C, the cable should be preheated.

The recommended allowed bending radius of the cable is as follows: for unarmored cables, it should not be less than 6 times the outer diameter of the cable; for armored or copper tape shielded cables, it should not be less than 12 times the outer diameter of the cable; for shielded flexible cables, it should not be less than 6 times the outer diameter of the cable.

The recommended allowed bending radius of the cable is as follows: for unarmored cables, it should not be less than 6 times the outer diameter of the cable; for armored or copper tape shielded cables, it should not be less than 12 times the outer diameter of the cable; for shielded flexible cables, it should not be less than 6 times the outer diameter of the cable.
